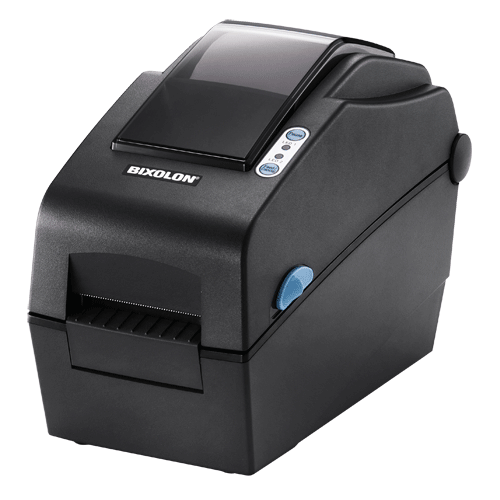

BIXOLON SLP-DX220 Direct Thermal 2" Label Printer

BIXOLON SLP-DX220 Direct Thermal 2″ Label Printer

The BIXOLON SLP-DX220 new direct thermal label printer is an upgrade from the SLP-D220 and offers a reliable label printing solution in the marketplace. It has larger memory with more internal character sets. It is ideal for a vast number of applications that require a dependable and cost effective barcode printer.

Description

Direct Thermal Label Printer
Fast Print Speed up to 6 inches Per Second (152mm per second).
High speed USB 2.0 supported.
High resolution 203 dpi (300 dpi optional ) printing
Bigger memory capacity providing 128Mb flash memory & 64Mb SDRAM
Short label (minimal height of label up to 6mm) printing supported
Intelligent leap-over™ (Detect empty label and leap over next label automatically)
Optional external paper supplier for bigger size of paper
Lower power consumption, power save mode
Free label design program (Fully featured) provided

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

24 months

GENERAL SPECIFICATIONS

Printing Method:
- Direct Thermal
Printing Width:
- SLP-DX220: 54 mm
- SLP-DX223: 56.9 mm
Media Width:
- Min. 15 mm to Max. 60 mm
Media Thickness:
- Min. 0.06 mm to Max. 0.20 mm
Sensors:
- Transmissive, Reflective (adjustable), Head open
Roll Diameter:
- Max Ø 130 mm
Dot Pitch:
- SLP-DX220: 203 dpi
- SLP-DX223: 300 dpi
Printing Speed (Max.):
- SLP-DX220: Max. 152 mm/sec, 6 ips
- SLP-DX223: Max. 100 mm/sec, 4 ips
Bar-code Type:
- 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB
- 2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Font:
- Character Sets:
  - 10 SLCS Resident Bitmap Fonts
  - One SLCS Resident Scalable Font
  - 16 BPL-Z™ Resident Bitmap Fonts
  - One BPL-Z™ Resident Bitmap Font
  - 5 BPL-E™ Resident Bitmap Fonts
  - 23 Code Page
  - Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics:
- Supporting user-defined fonts, graphics, formats, and logos
Emulation:
- SLCS, BPL-Z™, BPL-E™
- BASIC interpreter for data stream processing and ticketing emulations.
Controls:
- Function
Memory:
- SDRAM: 64MB
- Flash (Non-Volatile Memory): 128MB
Interfaces:
- USB (2.0 full speed) & RS-232C interface
- Or USB (2.0 full speed) & Ethernet (10/100)
- Can also have WLAN with USB Dongle
Auto Cutter:
- Optional
Driver available for:
- Windows Driver (EURO Plus/Seagull™), OPS Driver, Linux CUPS Driver, MAC Driver, Virtual COM USB/ Ethernet Driver, Utility Program, Label Artist™
- Android SDK
Operating Environment:
- Temperature: 0 to 40 °C
- Humidity: 10 to 80% (no condensation)
Storage Environment:
- Temperature: -20 to 60 °C
- Humidity: 10 to 90% (no condensation)
External Dimensions (WxDxH):
- 120 × 230 × 170 mm
Weight:
- 1.36 Kg
Power Supply:
- 100-240V 50/60Hz
