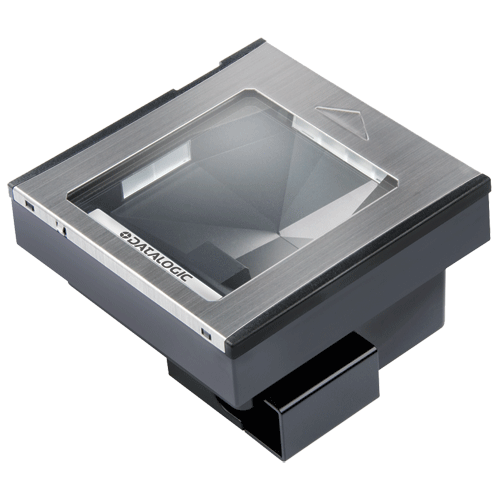

DATALOGIC Magellan® 3300HSi Series Omni-directional Imaging Scanner

The Magellan™ 3300HSi bar code reader brings Datalogic’s new imaging technology to the high-volume point-of-sale. Along with the 3200VSi vertical reader, they are the first bar code scanners to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar™ codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3300HSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.

Description

Datalogic’s high performance Imaging Technology
Linear and/or 2D bar code reading
Solid-state electronics
Software driven – flexible and upgradeable
Micro SD card slot
Multiple interfaces in every unit
RS-232 auxiliary port
Image capture
Illumix™ intelligent illumination technology reads bar codes from mobile phones or PDAs
Supports GS1 DataBar™ codes

GENERAL SPECIFICATIONS

Scan Engine: Area Imager
Light Source: Multiple diffused 625 nm LED’s
Scan Pattern: 1280 x 1024
Scan Rate: Max. 39 million pixels per second
Image Capture:
- Graphic Formats: BMP, JPG, Greyscale 256, 16, 2
- Capture Area: 1280 x 1024
Contrast Ratio: Min. 25%
Resolution: 5 mil
Depth of Field: Read Height 10.2 cm
Tilt Angle: 0 – 360°
Pitch Angle: +/- 65°
Ambient Light Immunity: 0 – 86100 lux
Symbologies supported:
- 1D: Auto discriminates all standard 1D codes including GS1 Databar™ linear codes
- 2D (optional): Aztec Codes; DataMatrix (ECC200 only); Maxicode; QR Code; GS1 Databar™ Stacked Codes; GS1 Databar™ Omni Directional Stacked Codes; MicroPDF417; PDF417
Programming Method: Magellan On-Screen Programming (OSP) configuration software is available for download at no charge.
Driver available: JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.
Indicators/Controls:
- Green LED for good read
- Buzzer
Interfaces:
- IBM 46XX
- RS232
- IBM USB
- USB Keyboard
- USB COM
- Keyboard Wedge
I/O Ports:
- Powered RS232 Aux. Port
- EAS: Checkpoint Systems: Integrated Hardware will work with Counterpoint IV, V, VI & VII models
- Sensormatic: Good read acknowledgement
- Micro-SD card reader to help with software maintenance and upgrades
Supply Voltage:
- AC Input: 90-264 VAC, 47-63 Hz
- Output: 10V 800mA
Power Consumption: Max 9.9 Watts, nominal 3.0 Watts, Sleep mode 2.0 Watts
ESD Protection: 25 kV
Operating Environment: 0 ~ 40 °C, RH: 5-95% Non Condensing
Storage Environment: -40 ~ 70 °C, RH: 5-95% Non Condensing
EMC/Safety Standards: C-Tick; EN60825-1 Class 1 LED; IEC 60825-1 Class 1 LED Product
External Dimensions (WxDxH): 15.2 x 15.2 x 8.7 cm
Weight: 0.79 Kg

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

36 months
