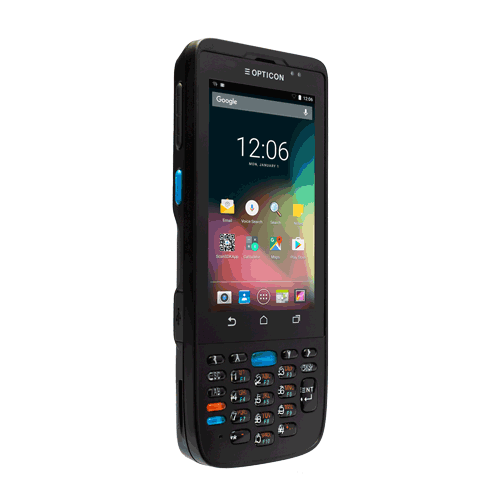

OPTICON H-29 2D Android 6.01 PDA Device

OPTICON H-29 2D Android 6.01 PDA Device

$869.00 GST

The H-29 is an ergonomic mobile computer that comes with the Android 6.0.1 operating system, that has the functionality of a computer and a scanner, but with the experience of a smartphone. A 8MP camera with autofocus is included.

Share This Items :

Quick Payment

100% Secure

24/7 Support

Ready For You

Description

  • Mobile Computer
  • Android 6.0.1
  • alphanumeric keypad
  • Bluetooth 4.1 LE & NFC
  • IEEE 802.11 a/b/g/n
  • 8MP CMOS camera with autofocus
  • Octa-core Processor
  • IP 65



GENERAL SPECIFICATIONS

  • Processor: Qualcomm Snapdragon 617 A53 Octa-core
  • Operating Platform: Android 6.01
  • Development Environment: Opticon SDK downloadable
  • Memory:
    • 16GB EMMC
    • 2GB LPDDR3 RAM
    • Memory Expansion: Micro-SD card slot
  • Scan Options:
    • Light source: Aiming green LED, warm white illumination LED
    • Scan method: CMOS area sensor, 640 x 480 pixels Black/White
    • Scan rate: Up to 100 fps
    • Reading pitch angle: -65 to 0°, 0 to +65°
    • Reading skew angle: -65 to 0°, 0 to +65°
    • Reading tilt angle: 360°
    • Curvature: R>15 mm (EAN8), R>20 mm (EAN13)
    • Min. resolution at pcs 0.9: 0.1mm / 4 mil. Min. PCS value: 0.9
    • Depth of field:
      • Code 39 (5 mil), 52 – 126 mm
      • Code 39 (10 mil), 46 – 246 mm
      • Code 39 (20 mil), 60 – 466 mm
      • QR Code (6.7mil), 64 – 106 mm
      • QR Code (15mil), 30 – 234 mm
    • Symbologies supported:
      • 1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
      • 2D Codes; Aztec Code, Aztec Runes, Data Matrix, MaxiCode, QR Code, Codablock F Composite codes, Passport MRZ (OCR-B), Micro-PDF417, PDF417
      • Postal codes; Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
  • Keyboards:
    • 1 power key, 2 volume keys, 1 scan key, 16 Numeric Keys, 4 navigation Keys
  • Audio: Through Bluetooth
  • Display:
    • TFT LCD WVGA, capacitive touch panel, colour screen
    • Size: 4.3”
    • Protection: Gorilla glass
    • Operating Indicators: 2 LED’s (red/green), 1 LED (red/green/yellow)
    • Non-visual: Vibrate, Buzzer
  • Camera: Rear Facing 8MP, Auto-focus, LED flash, low light mode
  • I/O Ports: Micro-USB port for power only, no data communication interface
  • Ethernet: via single dock (external module) or multiple cradle
  • Radio Options:
    • Bluetooth: 4.0 LE
    • W-LAN: WiFi, IEEE.802.11 a/b/g/n /ac/r
    • NFC: ISO14443-4 (Type A&B), ISO15693, Mifare, Felica (ISO/IEC18092)
    • GPS: GPS/GLONASS
    • Optional W-WAN: 4G
  • Battery: Lithium-Ion 3.7V 2300 mAh
    • Optional Extended Battery: 3450 mAh
    • Charging Technology: Qualcomm Quickcharge 2.0 (USB Only)
  • Battery Life: TBD
  • Drop Specification: 1.5 m / 5 ft drop onto concrete surface (MIL-STD 810G)
  • Environmental Sealing: IP65
  • ESD Protection
  • Operating Environment: -20 ~ 60°C
  • Storage Environment: -30 ~ 70°C
  • EMC/Safety Standards: Product compliance: CE, NCC, BSMI, VCCI, TELEC, IEC62133, UN38.3, RoHS, BQB, Wi-Fi logo compliance
  • External Dimensions (WxDxH): 71.8 x 19.5 x 175 mm (with Standard Battery)
  • Weight: 308 g with standard Battery



Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery

12 months
