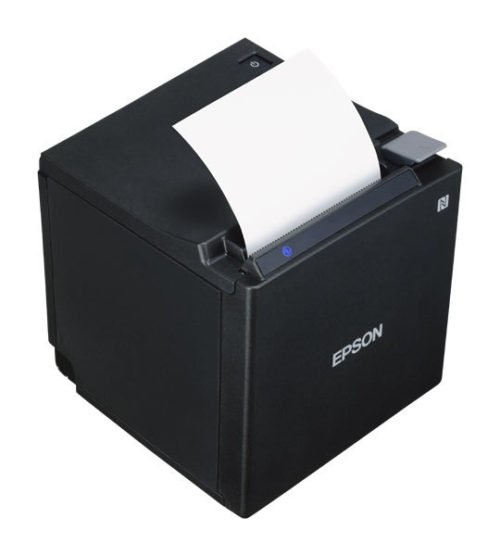

POS Receipt Printer TM-m30II

POS Receipt Printer TM-m30II

$339.00 GST

Compact receipt printer with multiple interface options.

The sleek TM-m30II POS thermal receipt printer offers multiple interface options for remarkable versatility. A compact 3″ receipt printer with modernistic design, it features multiple connectivity with USB, Ethernet, Bluetooth or Wifi options. Ideal for busy retail and hospitality environments, the TM-m30II has a high print speed of up to 250 mm/sec, a 150 km print head life and mean cycles between failures (MCBF) of up to 65 million lines. It is also ideal for kitchen slip printing with its 180 degree rotation function and additional LED indications for easy operation. Equipped with innovative paper-saving technology, it enables you to reduce paper usage by up to 49 percent*1.

Modern industrial design
Compact 3” receipt printer with modernistic design; Ideal for order slip kitchen printing with 180 degree rotation

Versatile connectivity
Multiple connectivity with USB, Ethernet, Bluetooth and Wifi options

Fast receipt printing
High print speed of up to 250 mm/sec

Remarkable printer reliability
Reliable performance with 150km print head life and Mean cycles between failures (MCBF) up to 65 million lines

Paper-saving functions
Reduce paper usage by up to 49 percent*1

Efficient and User-friendly
Equipped with additional LED indications for easy operation

Category
Share This Items :

Quick Payment

100% Secure

24/7 Support

Ready For You

Description



General Information:

  • Printer Driver: Windows Driver (APD), OPOS, OPOS.NET, JavaPOS (Win), JavaPOS (Linux), TM Virtual Port Driver, CUPS Driver (Linux), Mac Driver, ePOS SDK (Android, iOS , Javascript)
  • Sensors: Paper End, Cover Open
  • LED Indicators: Blue LED – Power, Interfaces (LAN, Wi-Fi, Bluetooth)
    Orange LED – Error and/or Paper Out
  • Built-in Feature: Advanced Paper Reduction, 180 degree rotation, backfeed guide

Print Font:

  • Font: ANK Font A: 12 × 24 (Default); ANK Font B: 10 × 24; ANK Font C: 9 × 17; Kanji Font: 24 x 24
  • Character Set: 95 Alphanumeric, 18 International, 128 x 43 Graphic
  • Barcode Standards: Bar code: UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar
  • 2D Symbol: PDF417, QR code, Maxi Code, Data Matrix, Aztec, Two-dimensional GS1, DataBar, Composite Symbology

Paper:

  • Dimensions (mm): Roll paper: 79.5 ± 0.5 (W) × Dia. 83
  • Overall Dimensions (D x W x H): 127 x 127 x 135 mm

  • Colour: Epson Black (EBCK), Epson Ultra White (ENB9)

  • Printing Method: Thermal Line Printing
  • Dot / Line: 576 dots
  • Dot / Inch: 203 x 203 dpi

  • Standard Accessories: Cash Drawer, OT-WL06 Wi-Fi Dongle, DM-D30 customer display, Barcode Scanner*3, USB-Hub*4


Printer Software:

  • Utility: TM Utility (iOS, Android), TM-m30II Utility (Windows Desktop), Epson Net Config (Win, Mac), TM Bluetooth Connector, Deployment Tool, Monitoring Tool, TM-Print Assistant (iOS, Android)

  • Easy Setting: Easy pairing with NFC, QR Code


  • Dimensions (W x D x H): 127 x 127 x 135 mm
  • Weight: 1.3 Kg

Interface:

  • USB: 1 x USB Type A (Additional Interface Port for Peripheral)
  • Interface: Ethernet Model: Built-in USB + Ethernet 10/100Base-T/TX Bluetooth Model: Built-in USB + Ethernet 10/100Base-T/TX + Bluetooth 3.0 (EDR Supported)

Reliability:

  • MTBF: 360,000 hours
  • MCBF: 65 million lines
  • Printer Mechanism Life: 17 million lines
  • Auto Cutter Life: 1.5 million cuts

  • Power Consumption: 32.4 W
  • Power Supply: External power supply (Model: Adapter-C1)
  • Supply Voltage: DC + 24 V ± 7 %
  • Temperature & Humidity: Operating Temperature: 5 – 45° C (41 – 113° F)
    Humidity: 10 – 90% RH

  • Receive Data Buffer: 45 bytes or 4 KB


Options:

  • Wireless LAN Dongle: OT-WL06
  • Customer Display Unit: DM-D30
  • Wall Hanging Unit: OT-WH30
  • External Buzzer: OT-BZ20

  • Print Speed: 250 mm/s
  • Printer Language: ANK + Thai/Viet + Simplified Chinese (Unicode Support*2)



Specifications

  • Modern industrial design — sleek 3″ thermal receipt printer; compact footprint; ideal for counter spaces
  • Versatile connectivity — multiple interface options; USB, Ethernet, Bluetooth and wireless (802.11b/g/n/ac)
  • Fast receipt printing — speeds up to 250 mm/sec
  • Remarkable printer reliability — 150 km printhead life1 and auto cutter life of 1.5 million cuts1
  • Paper-saving functions — reduce paper usage by up to 30 percent2
  • 2-year limited warranty — service and support you can count on



What’s in the box:
Roll paper x 1 roll (for checking the initial movement of the printer), Setup guide, Power switch cover, External power supply, Spacer for 58 mm
