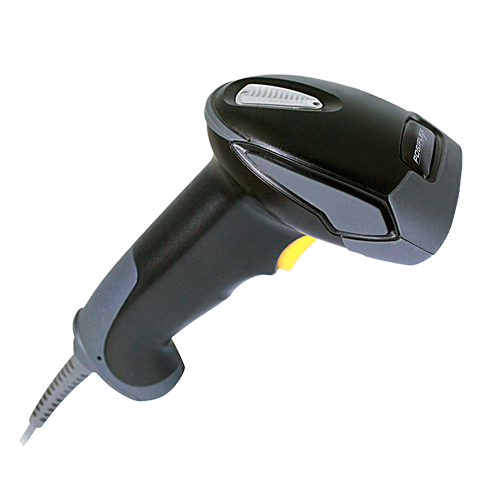

POSIFLEX CD-3870 Linear Imager Scanner Series

The Posiflex CD-3870 offers a longer range scanning capability, from 0 to 500 mm covering a wide range of scanning distances with an inexpensive price. Fast scanning rate up to 270 scans per second, it satisfies a retailer’s busy checkout needs. With large trigger button and ergonomic design, CD-3870 helps the retailer operate in an effortless way

Description

Long Range 1D CCD scanner
Depth of Field : 20 mm – 500 mm
Resolution : 0.075 mm (3 mil)
Scan Angle : 45 degree
Scan Width : Up to 250 mm (PCS90%)
Scan Rate : 270 scans/sec
Ambient light : 10,000 Lux
Drop Resistance : 1.5 m

GENERAL SPECIFICATIONS

Scan Engine: Long Range 1D CCD Scanner
Light Source: Visible Red LED
Scan Pattern: Single Line
Scan Rate: Up to 250 Scan/sec
Contrast Ratio: N/A
Resolution: Typical 0.075mm (3mils)
Depth of field: 20-500mm (Code 39, PCS=90%, 20 mils)
Symbologies supported:
- Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7
- All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128)
- Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Telepen.
- Option decodable: RSS-14, RSS Limited, RSS Expanded
Programming Method: Bar code command
Indicators/Controls:
- LED indication
- Programmable Beeper
Communication Type: Corded
Interfaces:
- USB HID
- USB Virtual COM
- Standard RS232
Supply Voltage: DC +5V ±10%
Power Consumption: N/A
Drop Specification: Withstands multiple drops from 1.5m onto concrete
Environmental Sealing: N/A
Operating Environment: N/A
Storage Environment: N/A
EMC/Safety Standards: CE, FCC DOC Compliance, VCCI, BSMI
External Dimensions (WxDxH): 60 x 130 x 160 mm
Weight: 120 g (cable not included)

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
