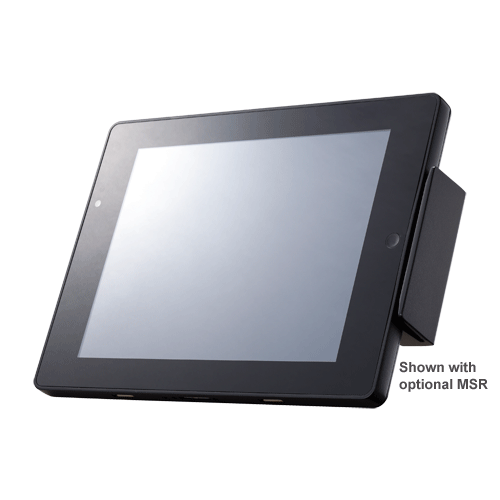

POSIFLEX MT-4308 8" Windows Tablet POS Solution

POSIFLEX MT-4308 8″ Windows Tablet POS Solution

MT-4308W (U.S. Patent 9436226 B2) is specifically designed for both retail and hospitality applications. The retail-ready 8” mobile POS runs on the latest Intel Cherry Trail processor, and supports MSR/RFID attachment, 2D barcode scanner attachment with pistol grip, and an optional dock station to converts the device into a full-fledged, stationary POS.

Description

POS 8″ tablet Solution
Gorilla glass PCAP touch w/ multi-touch support
Optional Pistol grip handle is ergonomically designed for easy handling of the tablet.
Hand strap strengthens the stability and eases user’s fatigue during the hours of work.
Optional dock station equiped with a built-in 3” thermal printer and various I/O connections
Optional MSR attachment
Optional 1D or 2D barcode scanner built in the pistol grip
MT-4308W is designed with advanced power saving technology that provides long battery life for daily operation.
The optional pistol grip also houses a removable battery that vastly extends the overall operating time.
MT-4308W comes with the POS industry standard 1024 x 768 resolution
Windows IoT Mobile Operating System

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months

GENERAL SPECIFICATIONS

CPU:
- Intel Cherry Trail x5-Z8350, 4C
- Base Frequency: 1.44 GHz, up to 1.92 GHz (Burst)
Memory:
- DDR3L 2GB standard
Storage device(s):
- 64GB eMMC
Display:
- 8″ TFT LCD with LED backlight
- Resolution: 1280 x 800 (default set to 1024 x 768 resolution)
Touch Panel:
- Gorilla glass PCAP touch with multi-touch support
I/O Ports:
- 1 x micro SD
- 1 x micro SIM
- 1 x micro USB
WIFI:
- 802.11abgn 2.4 GHz / 5.0 GHz dual-band
- Bluetooth v4.0
Optional Features:
- 3G (factory fit)
Camera:
- 8MP AF rear-facing
Optional Docking Station:
- 3 x USB
- 1 x LAN
- 2 x COM(DB9)
- 1 x CR port
Audio:
- 1 x built-in Speaker
OS Support:
- Windows 10 IoT 64 bit
Environmental Sealing:
- Front panel IP65 (without optional MSR)
Power Supply:
- Battery: 4800mAh minimum
- Pistol Grip Option has an extra 5000mAh Battery
External Dimensions (WxDxH):
- 212mm x 16.8mm x 157mm
Weight:
- 550g
