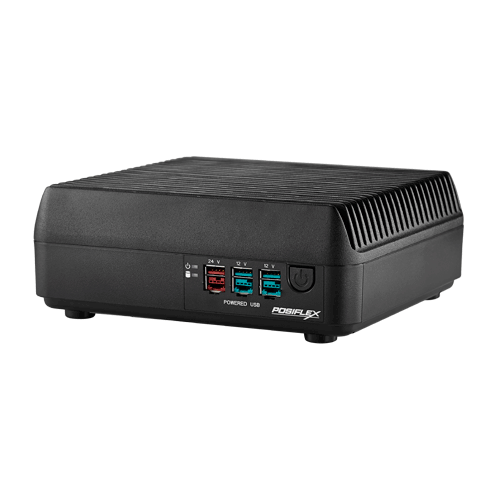

POSIFLEX TX-5300 Retail Fan-less POS Terminal

GENERAL SPECIFICATIONS

• CPU:
  • Intel Core i3-8100T/2.4GHz up to 3.1GHz/6M Cache
  • Other options:
    • Intel Core i5-8500T/2.1GHz up to 3.5 GHz/9M Cache
• Memory:
  • DDR4 SO-DIMM socket x 2, max 32GB, default 4 GB
• Storage device(s):
  • In Australia Standard with 128 GB SSD,
  • Can also be purchased with a 500 GB SATA HDD (Special Order) or other size SSD Drives
• I/O Ports:
  • 6 x RS-232 Ports (4 x DB9 standard, optional COM5/COM6 with cable from Service window) with 5V/12V Support
  • 1 x Parallel port
  • 4 x USB 3.0
  • 3 x Powered USB Ports (2 x 12V & 1 x 24V)
  • 1 x 10/100/1000Mb Ethernet Port
  • 1 x VGA Port (D-Sub with 12V Power for Posiflex LCD Monitors)
  • 1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
  • 1 x M.2 Slot
• Audio:
  • Internal 2W Speaker
  • 1 x Mic-in
  • 1 x Line Out
• OS Support:
  • WIN10 IoT 64 bit / Linux per request
• Environmental Sealing:
  • N/A
• Operating Environment:
  • 0 ~ +50 °C, 20 ~ 90% RH with SSD
  • 0 ~ +40 °C, 20 ~ 90% RH with HDD
• Storage Environment:
  • -20 ~ +70 °C, 10 ~ 90% RH
• Power Supply:
  • 12V DC Power Adapter (150W)
• External Dimensions (WxDxH):
  • 220mm x 202mm x 83mm
• Weight:
  • 2.75 Kg
