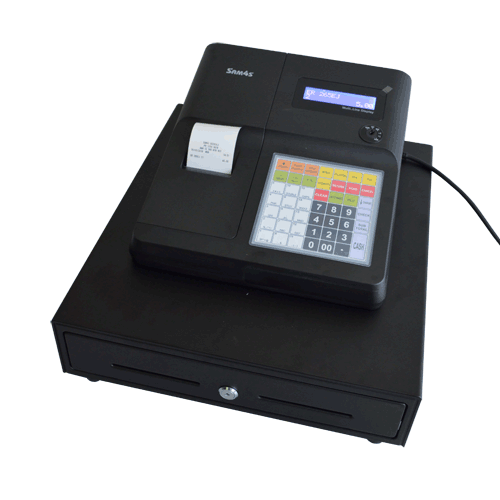

SAM4S ER-265EJ Thermal Single Station Cash Register with Flat Keyboard

GENERAL SPECIFICATIONS

• Type: 1 Station Direct Thermal
• Printing Speed (Max.): up to 8 Lines/sec
• Paper Width: 57 mm +/- 0.5 mm
• Paper Roll Diameter: Max Ø 70.0 mm
• Paper Supply Method: Load and feed

Input/Output:

• Keyboards: 49 Key Flat Keyboard
• Display:
  • Operator: 16 Char x 2 lines LCD with Blue B/L
  • Customer: 16 Char x 2 lines LCD with Blue B/L
• Drawer:
  • ER265JB: 4B/4C Small Drawer with Media Slot
  • ER265JRALB: Metal drawer 4B/8C with media Slots
• I/O Ports:
  • 2 x RS232 (RJ45)
  • 1 x USB
  • 1 x SD Card

Memory:

• Program: 2 MByte FLASH (CPU Internal)
• Data: 4 Mbit SRAM Ext Option: 4 Mbit SRAM
• Memory Protection: 90 Days
• Memory Configuration: User configurable:
  • PLUs 1,000 (Max 10,000 [dependant on memory config])
  • 20 Groups (max 99)
  • 10 Clerks (Max 99)

Operating System Functions:

• 1000 PLU
• 15 Departments
• 32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
• 18 Character Description
• 10 Clerks
• Currency Convertor
• Calculator Function
• Max 800 Line Electronic Journal
• Automatic Date & Time
• Alpha Overlay Programming

Software Utilities:

• Programming Utility Software

Power:

• Power Supply: AC 230V +/- 10%
• Power Consumption: 36.8W

EMC/Safety Standards:

• CE, FCC, UL, TUV, GS, C-tick

External Dimensions (WxDxH):

• ER265JB: 325 x 420 x 227 mm
• ER265JRALB: 450 x 430 x 245 mm

Weight:

• ER265JRALB: 10.7 Kg
