M2 Handheld PDA

Description

M2 Handheld Terminal Product User Manual

Power button

• Short press: light up the screen, lock the screen
• Long press: in shutdown state, press for 3-5 seconds to start up; in startup state, press for 3-5 seconds to select shutdown or restart.
• In  case of crash or redundancy: 1ong press for more than 10 seconds to automatically shut down and restart.

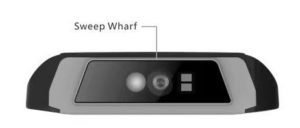

Scan key

As a fast use key of infrared barcode scanner, directly use barcode scanner in appropriate application

Front camera

2 megapixel, auto focus and audio recording

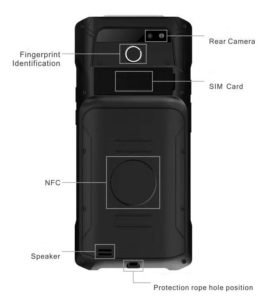

SIM Card

It supports the insertion of Dual SIM cards, and the network supports 3G/4G dual network access.  Please make sure that the device is shut down when inserting SIM, so as not to cause machine failure and unnecessary loss!

Rear Camera

5 megapixel, with its own flash, supporting auto focus, and audio recording, easy to deal with all kinds of scanning payment scenarios.

TECHNICAL SPEC

• Project: Technical Parameter
• Processor: CPU arm cortex-a53 4-core,main frequency 1.5GHz
• Operating System: Andraid 8.1
• Structural Style: Hall plate
• Outline size: 170*79*15mm
• Screen size: 5.99inch HD720*14400.IPS
• Touch screen: Capacitive screen,multi touch
• Side key: Power key(lock screen key)+scan key+volume increase +volume decrease
• Battery: 4.2V
• Memory: 16GB AOM+2GB RAM
• Extended Sstorage: Memory card,up to 32GB
• Camera: 2 megapixel tront camera and 8 megapixel rear camera support auto locus and audio recording
• Multi-Media: Audio supports MP3,AAC,OGG,etc Video supports MP4,H 263.H.264 and other formats
• GPS: Support
• AGPS: Support
• WIFI: 2.4G、5.0G,IEEE802.11 b/g/n/ac
• Bluetooth: Support Bluetooth 2.1/3.0/4.0 and BLE

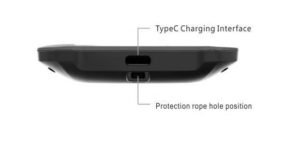

• Charging Interlace: TYPEC
• USB Interface: TYPEC USB2.0
• Horn: 1W/8R
• Sensor: G-Sensor、Light Distance Sensor、Fingerprint   ldentiication
• NFC: TypeA、TypeB、M1
• Infrared Scanning code: Support one-dimensional and two-dimensional code Scanning
• Standard System: GSM/GPRS/WCDMA/TD SCDMA/TOD LTE/FDD-LTE
• WCDMA: WCDMA B1(2100)MHZ B5(850)MHz B8(900)MHz
• GSM SIM: 850/900/1800/1900MHz
• TDSCDMA: 834 B39
• TDD LTE: 838 B39 B40 B41B
• FDD_LTE: B1 B3 B5 B7 B8 B20
• USIM: Support
• SIM Card: With Double Cassette

Decoding Types

1D:UPC-A,upc-e,upc-01.EAN-13,oan-8,ISBN/ISSN,39,39 (full code).32.trioptie39,cross 25,industry 25, matrix 25,kudeba (NW7),128,ISBT128,93,11(usd-8),MSI/Plessey,UK/Plessey,UCC/EAN128(gs1-128),ChinaPostcode,China finance code,gs1databar(formerly RSS) series

2D:PDF417,MicroPDF417,QR code,microqr code,DataMatrix,Hanxincode,Aztec code,GS1 composite

Warning

SAFETY WARNINGS AND SUGGESTIONS

Please insert the AC plug of the charger into the AC socket corresponding to the identification input. It is strictly prohibited to use it in the place where there is any explosive gas. Non professionals should not turn on the equipment and related accessories and charger to avoid damage or danger. This product mav cause radio interference in use. Please take practical measures for interference in time. Please do not Use near medical equipment.

Avoid installation and use in thunderstorm days, otherwise there is a risk of lightning shock; when you find overheating or smoke and smell abnormal smell, please disconnect the power supply immediately. When using, please put on the safety rope to prevent the machine from falling and damage.

DISCLAIMER

Please refer to the material object. The right of interpretation of this document is vested in our company.  We reserve the right to amend this instruction without prior notice.
