DATALOGIC Joya™ Touch 22 Portable Data Terminal Series

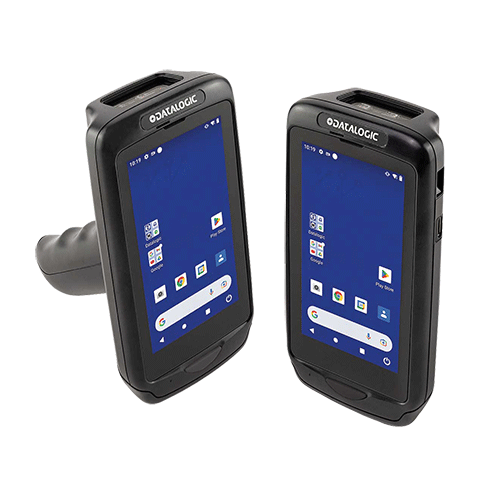

JOYA™ Touch 22 – The replacement Full Touch PDA for the MEMOR 1JOYA™ Touch 22 is your business companion for any data capture application, from assisted sales to the shop floor, or back-end receiving to the warehouse.The Memor 1 device comes with a powerful Qualcomm SDA660 platform and features Android™ 11. This device is available in two form factors: a hand held version resembling a rugged smartphone or a pistol-grip version with a comfortable trigger.

Description

Qualcomm® platform SDA660 System-on-Chip running at 2.2 GHz
Android™ operating System with Google Mobile Services
4 GB RAM Memory and 32 GB Flash Memory storage
Wi-Fi featuring 2×2 MU-MIMO for higher throughput and coverage
Advanced Megapixel imager, ideal for all types of 1D/2D codes on printed material or displayed on screens
Bluetooth® v5.1 with BLE to support different peripherals consuming less power
Backward compatibility with all Joya Touch and Memor 1 accessories
Datalogic’s ‘Green Spot’ technology for visual good-read feedback
Compatible with all major MDM providers
Large 4.3 inch capacitive multi-touch FWVGA display with Corning Gorilla® Glass 3
Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
Wireless charging technology eliminates all contacts on the device and cradle
Precise indoor location with Quuppa Intelligent Locating System™
EASEOFCARE Service Plans offer a wide range of service options to protect your investment

GENERAL SPECIFICATIONS

Processor:
- Qualcomm® SD660 2.2 GHz processor
Orientation Detection:
- 3 Axis accelerometer
Angular Velocity Sensing:
- 3 Axis Gyroscope
Operating Platform:
- Android 11 (upgradeable to Android 13)
Development Environment:
- Datalogic Android SDK
- Xamarin SDK
- Ionic Cordova SDK
- React Native SDK
- Datalogic Enterprise Browser Javascript SDK
Software Utilities:
- Datalogic launcher as lockdown solution
- Datalogic Enterprise Browser as lockdown browser supporting Javascript SDK
- Datalogic’s SoftSpot soft Trigger
- WiFi Guard
- Datalogic Logger
Provisioning:
- Scan2Deploy Studio
- Android Zero-Touch
- QR Code Enrollment
Config & Maintenance:
- Scan2Deploy Studio
- OEM Config
- ProfileManager
- Wi-Fi QR Code Generator
Terminal Emulation:
- StayLinked SmartTE
- Wavelink Velocity
MDM:
- Soti MobiControl
- VMWare Airwatch
- Ivanti Avalanche
- 42Gears SureMDM
- Microsoft Intune
Memory:
- System Flash: 32 GB Flash Disk
- System RAM: 4 GB
Scan Options:
- Advanced 2D imaging technology with image capture
- Print Contrast (Minimum): 25%
- Field of View: 42°H x 32°V
- Depth of Field: 4.5 to 42.0 cm on UPC/EAN 13
- Resolution (Maximum): 1D Linear: 2.5 mils; Data Matrix: 6 mils; PDF417: 3 mils
- Reading Indicators: Datalogic’s ‘Green Spot’ technology for visual good-read feedback, Vibration software programmable
Symbologies supported:
- 1D / Linear Codes:
  - Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
- 2D Codes:
  - Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code
- Postal Codes:
  - Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
- Stacked Codes:
  - EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
- Digital Watermark Codes:
  - Digimarc Barcode (Red LED illumination model)
Keyboards:
- Physical Keys
  - Handheld: Home/scan fully programmable key
  - Pistol-Grip: Home/scan fully programmable key; Scan Trigger key
Audio:
- Speaker (Polyphonic)
Display:
- 4.3 inch full touch TFT-LCD color display
- FWVGA: 854 x 480 pixels
- 16M colors, LED backlight, Capacitive, multi-touch, Gorilla® Glass 3 with Air Gap
I/O Ports:
- USB-C: High Speed USB 2.0 Host and Client
Radio Options:
- Local area network (WLAN):
  - IEEE 802.11 a/b/g/n/ac and more
- Personal area network (WPAN):
  - Class 2, Bluetooth V5.1, with BR/EDR and Bluetooth Low Energy (BLE)
- NFC: Communication between device and dock
Battery:
- Replaceable battery pack with rechargeable Li-Ion batteries; 3.6 V; 3300 mAh
- Wireless charging
- Two charging options: Fast charging or Standard charging
- Battery Life: 12 Watt hours
Durability:
- Drop Specification: Withstands repeated drops from 1.2 m onto steel or concrete according to IEC 60068-2-32 method 1
- Tumble Specifications: 1000 0.5 m tumbles at room temperature according to IEC 60068-2-232 method 2
- Environmental Sealing
- ESD Protection
Operating Environment:
- Temperature: -10 to 50 ºC
Storage Environment:
- Temperature: -10 to 50 ºC
EMC/Safety Standards:
- Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use.
- Environmental Compliance: Complies to EU RoHS
External Dimensions (WxDxH):
- Handheld: 14.5 x 7.7 x 3.4 cm
- Pistolgrip: 14.5 x 7.7 x 11.6 cm
Weight:
- Handheld: 285.0 g
- Pistolgrip: 317.0 g

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

12 months
